Feature:
This air bubble machine adopts the disposable shaping craft.It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene air bubble (cushion) film in successions. Designs science, practical and rational structure of the machine.
It not only has good cushioning effect, shock resistance and heat resistance, but also has such advantages as good corrosion resistance and transparency , etc.
So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.

Characteristic:
1. Main parts: 3 Extruders, Control Panel, Bubble forming section, Automatic Winder,Rewinder.
2. To produce 5 layers air bubble film (laminated layer + PE front layer + bubble layer + base layer + laminated layer);
3. The laminated layer can be aluminized foil, MPET foil, kraft paper, EPE foam, BOPP film etc.;
4. Each layer is under individually control, can have different thickness & material formulation and color;
5. Film width from 1,000mm to 3,000mm;Or Customized size.
6. Screw L/D ratio is 1:32, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
7. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.
Machine details:

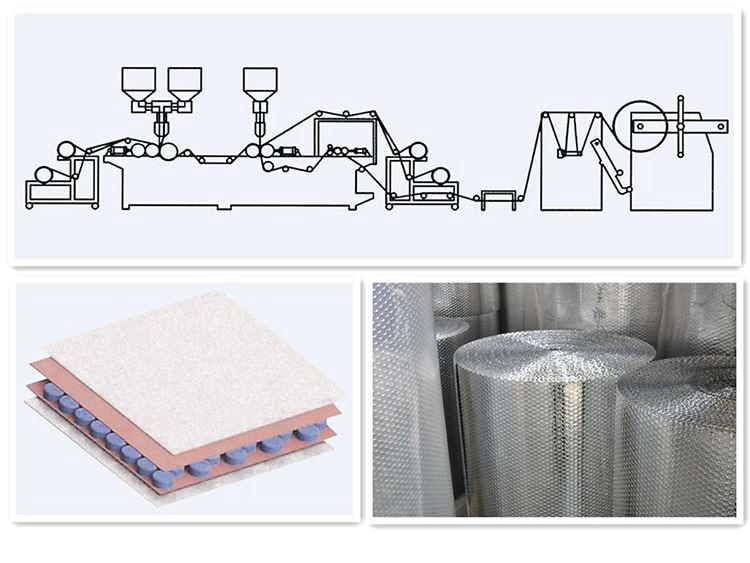

Mechanical Transmission Diagram & Bubbel Structure:

Technical Parameter:

Model	KP100-5T	KP120-5T	KP160-5T	KP200-5T	KP250-5T	KP300-5T
Max width mm	1000	1200	1600	2000	2500	3000
Screw diameter mm	55/55/55	55/55/55	65/65/55	75/75/65	85/85/75	90/90/80
Main motor power kw	15/15/15	15/15/15	22/22/15	30/30/22	37/37/30	37/37/30
Capacity Kg/hr	65-135	85-140	100-180	160-230	180-270	200-290
Line speed M/hr	800-1800	800-1800	800-1800	800-1500	800-1500	800-1500
Heating power kw	83	83	95	112	143	150
Running power kw	47	49	65	80	90	98
Total power kw	137	141	177	232	282	302
Raw material	LDPE/LLDPE/ Recycle material
Machine Weight kg	7700	8500	9500	10700	12700	13300
