Air bubble film envelope bag making machine
Kraft paper+bubble film; aluminum foil+bubble film; BOPP film+bubble film; PO film+bubble film; PE film+bubble film; The equipment makes a wide range of products and high degree of automation. It is an ideal equipment for making composite bubble envelope bags.

Features:
This machine is controlled by computer, imported servo motor for traction, constant tension of unwinding, photoelectric correction, convenient operation, counting of whole book, automatic stop when label is lost, automatic stop when lack of material, etc. The machine adopts advanced motion control technology, from sheet material unwinding to cutting and forming are controlled by PLC computer, servo motor fixed length, touch screen control, simple operation, stable operation, smooth and beautiful bags, strong and reliable bonding .

Air bubble film Laminate kraft paper:
For ref.:

Suitable material	kraft paper 80-110g/sqm (coated)+PE bubble film
Max design speed	80pcs/min(can make two at one time for small size)
Max bag length	550mm for one bag make 350mm for two bag one time
Max bag width	450mm
Max reel width	1400mm.
Max reel diameter:	Kraft paper￠1200mm, PE bubble￠1200mm
Power supply	3-phase 4-lines AC 380V 50HZ 25KW
Machine Weight	3800KG
Overall dimension(L*W*H)	16400*1750*2300mm

Product pictures:

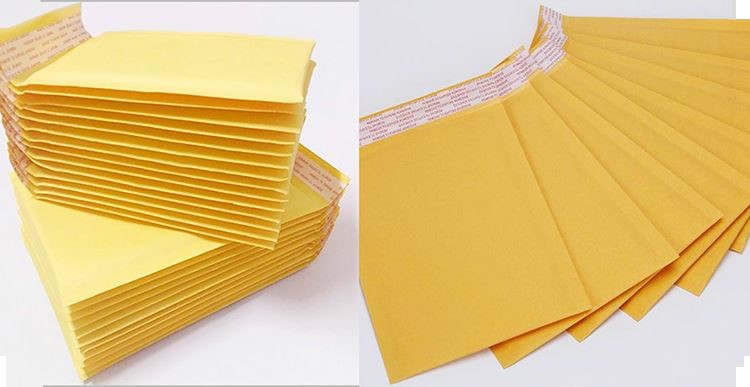

Air bubble film laminate kraft paper

Air bubble film laminate aluminum foil

Air bubble film laminate BOPP film
