2 Layer stretch film machine

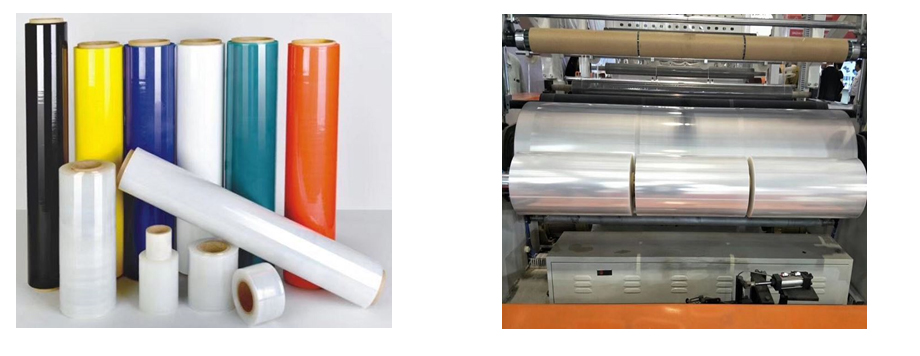

The multi-layer co-extrusion high speed stretch film making machine is mainly used for the production of PE Stretch Film. It is developed successfully according to the characteristics of similar products at home and abroad and the actual production line speed reaches 250m/min. The machine consists of extrusion unit, traction, trimming, finished product double-station automatic roll change, electrical appliances and other major components and the die head is JC-times brand, which can ensure uniformity, achieve only one-sided sticky effect and avoid the waste of glue.
The machine can be used in different formulations such as LDPE and LLDPE, product widely used in packaging of construction material, friction fittings, barrel film, barrel paper and hardware fittings.

Machine Parameter:

Model:	KP-1000Φ55/75x1250	KP-1500Φ65/90x1850
Screw diameter:	Φ55/75mm	Φ65/90mm
Production capacity:	80-130kg/h	90-150kg/h
Effective screw L/D:	30:1	30:1
Thickness of film:	8μm-50μm	8μm-50μm
Tolerance of thickness：	≤±5%	≤±5%
Width of effective film：	1000mm(max) or 2*500mm	1500mm/3*500mm
Structure of film layers：	AB OR ABA	AB OR ABA
Film material：	LLDPE or LLDPE+LDPE	LLDPE or LLDPE+LDPE
Electric power：	≥130KW	≥140KW
Machine dimension (about):	8m3.3m3.5mm	11mm3.5m3.8mm
